SG160/130-1JD重型数空金属丝网编织机

SG160系列重型数控金属丝网编织机,是我公司自行研发的一种机型,适用于编织较厚重的金属网面料,采用挠性剑杆直线引纬,开口量小,网面平整;有一次卡位和二次卡位两种打纬形式。踏盘吊综、拱综、伺服多臂三种开口机构可选,数控卷网、数控送经,网面张力自动调节。可编织不锈钢、铁、铜、黄铜、磷铜、铝、铂金、铁铬铝、聚酯、塑料等材料的丝网。

主要技术参数

型号:SG160/130-1JD

标准幅宽:1300 mm

丝径范围:0.1-0.8mm

编织密度:平织方孔10-100目/英寸、斜纹编织≤300目/英寸

转速:    约70转/分钟(实际转速取决于编织宽度和编织的规格),变频器无极调速

综框及形式:踏盘吊综(另有拱综、伺服多臂两种结构可选),2-8片铝合金综框或钢综框(选装)

数控机构:单向直线引纬。采用交流伺服电机数控送经,张力数据实时显示并自动调整,交流伺服电机数控卷网

基础张力:40000牛/米

重量:    6300kg

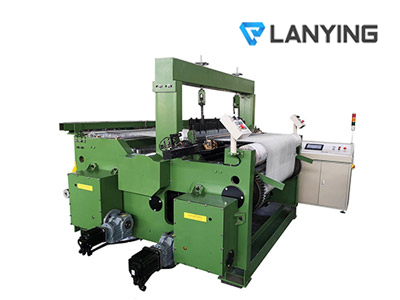

SG160/130-1JD Heavy-duty metal wire mesh weaving machine

SG160 Series CNC metal wire mesh weaving machine is designed for heavy wire mesh weaving. The opening is small, and mesh surface is flat, there are single beat-up form and double beat-up form.



Model No.: SG160/130-1JD

Wire diameter: 0.1-0.7mm

Nominal weaving width: 1300mm (arbitrarily adjust width, special width on request)

Weaving density: plain weave square hole 10-100 mesh/inch; twilled weave ≤ 350 mesh/inch

Speed: 60-70RPM the spindle frequency converter regulates speed, and the actual speed depends on the weaving width and specifications.

Shedding forms: Tappet hanging frame ( servo dobby and cam lead arch heald frames are also available), 2-8pcs aluminum or steel heald frames.

Weft insertion: High performance servo motor CNC single-way or two-way weft insertion, full carbon fiber rapier.

Beat-up form: single

Let-off/Take-up: CNC let-off(warp tension automatic display and adjust), CNC take-up (single-roller)

Wire material: Metal wires such as stainless steel, iron, bronze, copper, phosphate bronze, aluminum, platinum, polyester, plastic, etc , and non-ferrous wires.

Weaving method: plain, twilled, dutch, 3-heddle, 5-heddle, RDW, stain, weft density change,etc..according to request.

Basic tension: 40000N/M

Size(L*W*H)mm: 2750X3300X1960

Weight: 6300kg
