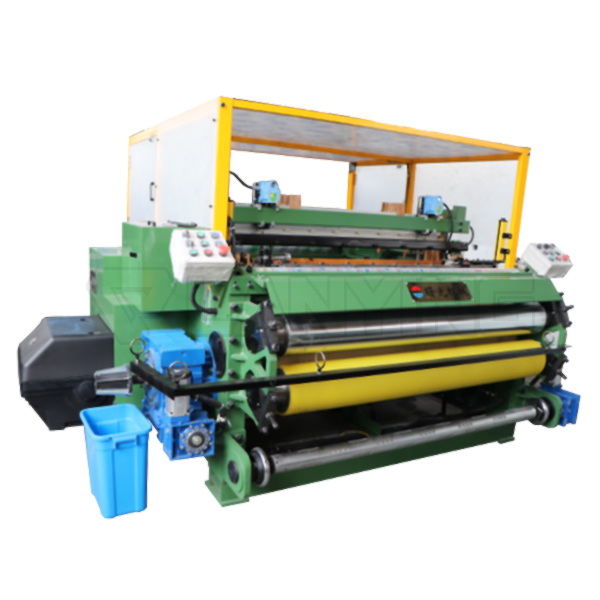

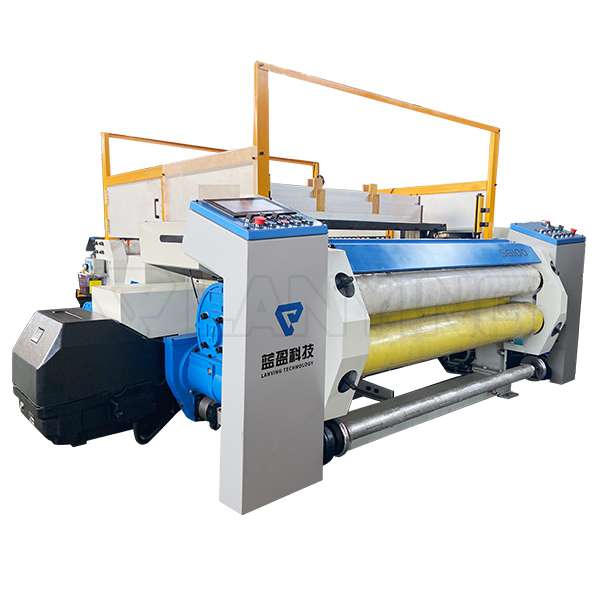

SG100/130-1JD 轻型数控金属丝网编织机

S100L series mainly suitable for fine mesh weaving.

SG100系列数控金属丝网编织机主要适用于高目数丝网的编织,具有噪音小、花色多样、维护简便的特点。

主要技术参数

型号:SG100/130-1JD

丝径范围:0.03-0.3mm

编织密度:平织方孔40-400目/英寸、斜纹编织600目/英寸

标准幅宽:1米、1.3米、1.6米、2米等可供选择,特殊幅宽可根据要求定制。

转    速:80-120转/分钟,主轴变频器调速,实际转速取决于编织的宽度和规格

开口形式:三种开口结构可供选择:凸轮导程拱综机构、电子旋转多臂机、伺服多臂机。铝合金综框, 如选电子旋转多臂机可达20片综框

引纬机构:伺服电机数控单向引纬或数控双向引纬,全碳素纤维剑带。

卡位形式:一次卡位

送经/卷网:数控送经(经纱张力实时显示并自动调节),数控卷网(三辊卷网)

编织线材:不锈钢、铁、铜、黄铜、磷铜、铝、铂金、聚酯、塑料等各种材料的金属和非金属丝网

编织方式:根据要求可进行平织、斜织、密纹、三综、五综、反差密纹、缎纹、变纬密,等等。如选多臂机,可以编织多种花型)

基础张力:15000牛/米

SG100 Series CNC metal wire mesh weaving machine mainly suitable for ultra fine, thin fabric weaving. It adopts large touch screen HMI, the operation is simple; specially designed precision let-off and precision tension control algorithm can display the tension in real time and automatically adjust the mesh surface tension; CNC 3-roller take-up structure can realize non-stop mesh removal at any length. The user can choose different shedding mechanism,L cam arch heald frames mechanism, electronic rotary dobby, servo dobby shedding mechanism. The weaving precision is high and noise is small, easy to operate and maintenance. According to the accuracy, it is divided into SG100L light-duty series and SG100P precision series.



S100L series mainly suitable for fine mesh weaving.



Wire diameter 0.016-0.3mm
Weaving density Plain weave square hole 40-400 (or 20-260)mesh/inch; twilled weave upto 600mesh/inch
Nominal width

(special width on request)

1.3m 1.6m 2m
Speed(the actual speed depends on the weaving specs and width) 80-120RPM 80-100RPM 65-80RPM
Total power 7.5KW 8.5KW 8.5KW
Size (L*W*H) mm 2750X3300X1500 2750X3600X1500 2750X4000X1500
Weight 4200KG 4500KG 4600KG
Basic tension 15000 N/m
